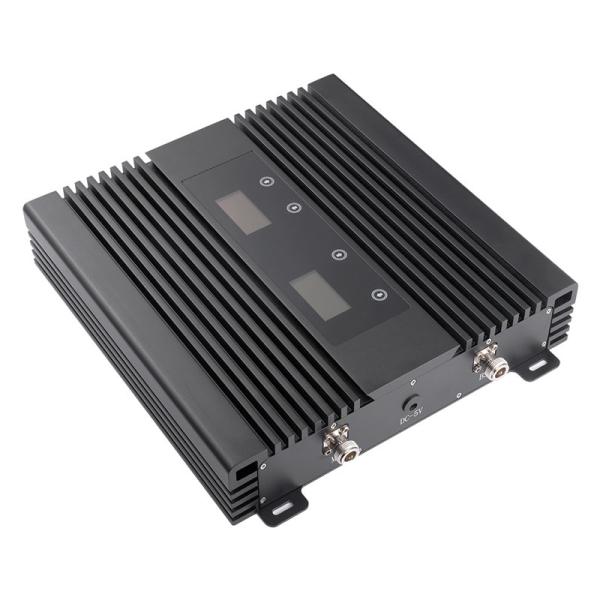

Output Power 27dBm Dual Band Signal Booster Cell Phone Repeater

Name: Output Power 27dBm Dual Band Signal Booster Cell Phone Repeater
Brand: ATNJ
Price: 250 USD

Brand Name : ATNJ

Model Number : AS-DB1800/2100

Certification : CE,ROHS，CCC，TUV,BV， ISO

Place of Origin : China

MOQ : 5Pcs

Price : USD+250---270+kit

Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability : 1000+unit+per day.

Delivery Time : 3-5 work days

Packaging Details : Standard neutral packing,48x46x18cm(1 kit)

1800MHz Range : 1710-1785MHz/ 1805-1880MHz

Gain : 80dB

Output power : 27dBm

Color : Black ,Cuztomized

AGC Intelligent function : Done,31dB @ 1dB/ Step

RF Connect Type : SMA/Female

Size : 48x46x18cm,5kg

2100MHz Range : 1920-1980MHz/2110-2170MHz

Contact Now

Output Power 27dBm Dual Band Signal Booster Cell Phone Repeater

Dual Band 1800/2100MHz Mobile Signal Booster Repeater Cell Phone Signal Ampilifier

You are probably wondering what a cell phone signal booster actually is. This is a common reaction that people have, and we are taking a moment to explain it to you. In the current age of mobile technologies, where the personal devices are wireless and private, every device is backed by a “backbone” wireless network carrier, which could be one of the many major carriers in the country, such as Vodafone. Over the years, the carriers have developed their infrastructure well and have been able to cover most of the country. But there are large parts of the country where the signal coverage is weak or reaches sparingly. This is where the cell phone repeater comes into play. They resolve calls data and LTE reception mainly. In terminology, we call correspondingly 2G 3G and 4G signal.

Technical Specifications

Specifications		Parameters
Frequency Range (Customers to Choose)	Uplink	1710-1785MHz,1920-1980MHz
	Downlink	1805-1880MHz, 2110-2170MHz
Frequency Bandwidth (3dB Bandwidth)		60MHz&75MHz
Gain		80±5dB
Automatic gain control (Step Attenuation)		31dB @ 1dB/ Step
Output Power(Customers to Choose)		27dBm
Spurious Emission		≤ -15dBm/30kHz
		9kHz~1GHz: ≤ -36dBm/30kHz
		1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR		≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple		≤ 3dB
AGC		20-30dB
I/O Impedance		50 Ω
Noise Figure		≤ 5dB
System Delay		≤ 5μs
RF Connector(Customers to Choose)		N(Female)
Operating Temperature		Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
Power Supply		AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter)
Specification		Size: 16511535mm, Weight: 1.3kg
Production Capacity		10000/Per Month
Antenna		Log Periodic Antenna +Ceiling Antenna

Further detail pls click here for downloading the products specification:

1800+2100 A012 Signal Repeater.pdf

Product Description

Brand: ATNJ

Frequency : DCS 1800 / WCDMA 2100

Up Link: 1710-1785MHz / 1920-1980MHz

Down Link: 1805-1880MHz / 2110-2170MHz

Gain:82dB

Output Power: 27dBm

Bandwidth:25M/75M/60M

Noise Figure:<=6

VSWR:<=3

Connector Type:N Female

LCD Display: Done

Sleeping Mode: Done

AGC Function (Automatical Gain Control): Done

Output Power 27dBm Dual Band Signal Booster Cell Phone Repeater

We are manufacturer, and have our own factory.

Signal problem & installation technique supporting

1. If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.

2. If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.

3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.

4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
